Videojet 3140 CO2 Laser Marking Printer
Industrial Laser printers for Moderate line speed application

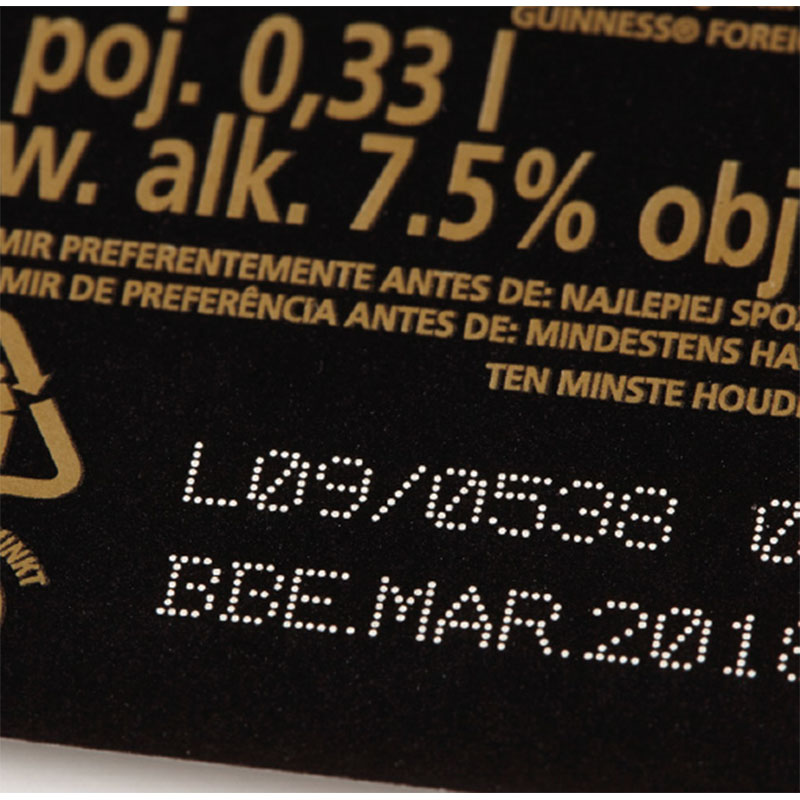

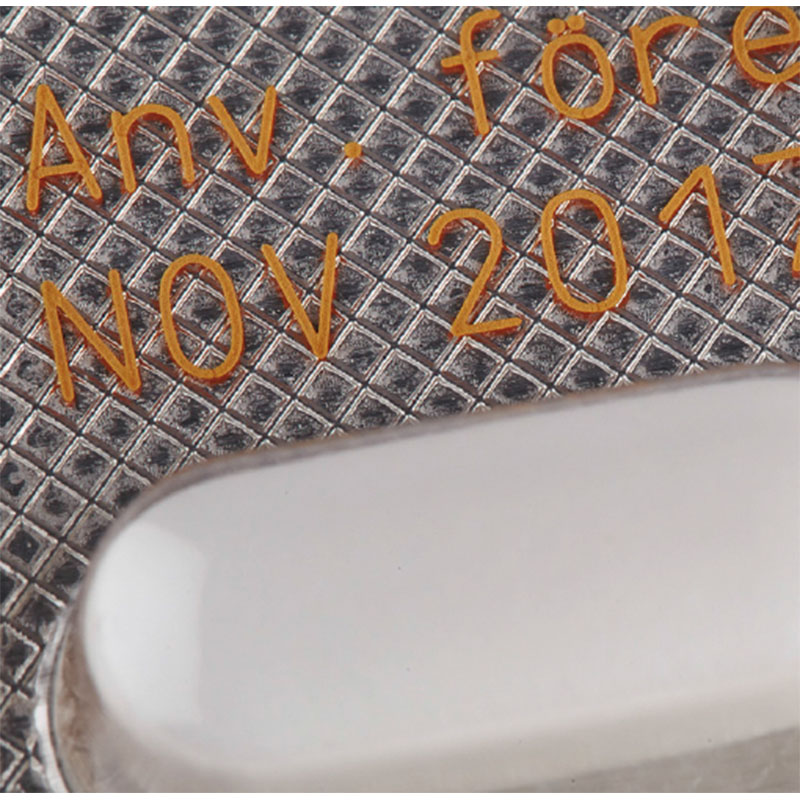

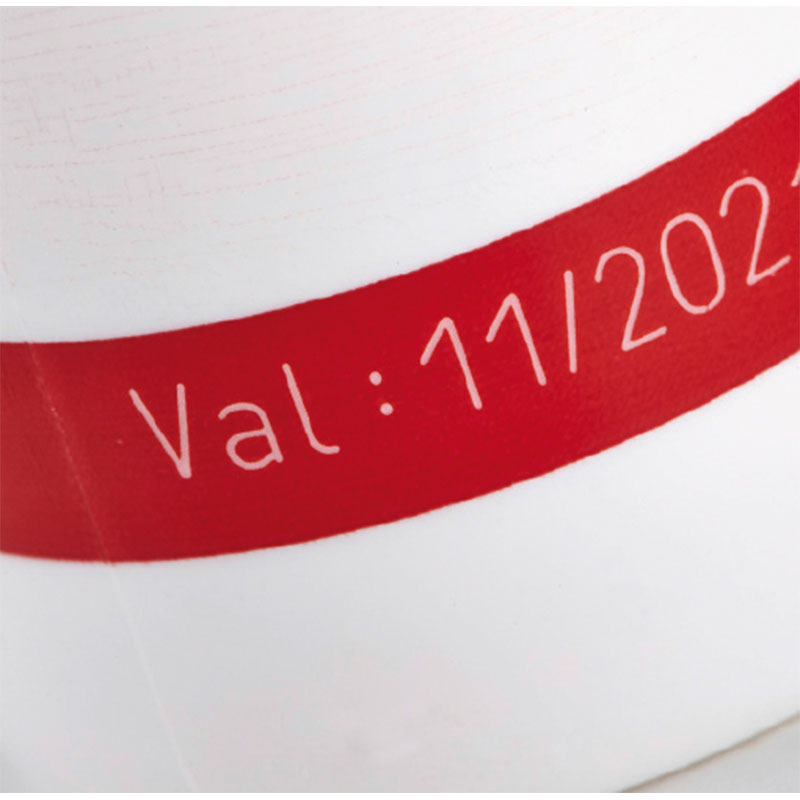

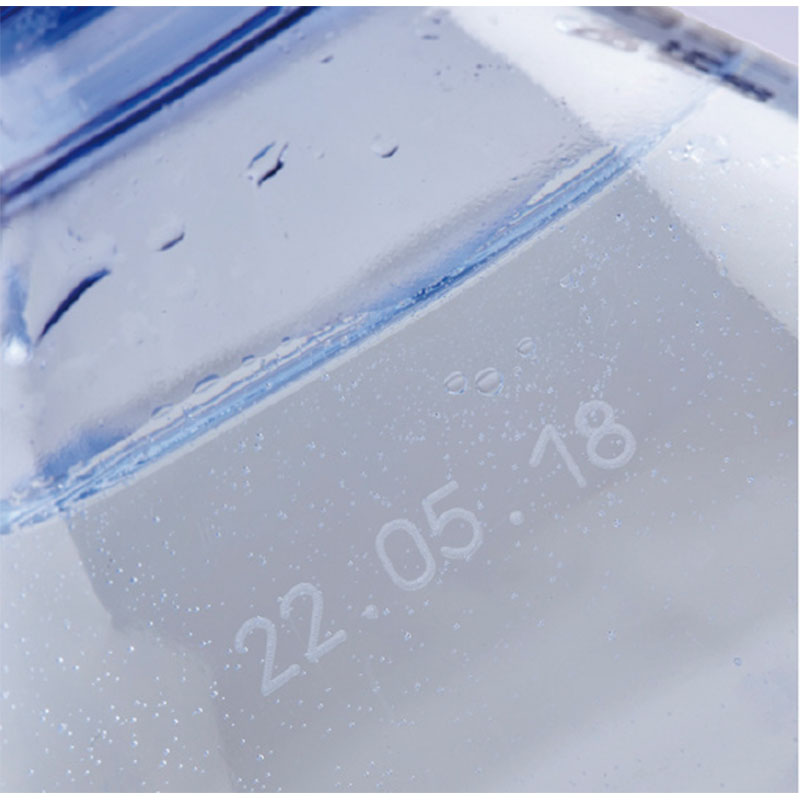

The Videojet 3140 10-Watt CO2 laser marking machine is engineered to offer all of the performance features found in higher wattage Videojet lasers, but with a power source better matched for moderate line speed applications. Ideal for both simple and complex code requirements on a range of substrates including paperboard, glass, painted metal, paper labels, PET and other plastic materials. The 3140 laser printing system offers flexibility to meet a broad range of applications in many food, beverage, cosmetics and pharmaceutical operations.
- Description
- Brand
Description
| Value | |
| Laser Tube | CO2 |
| Maximum Power | 10W |
| Laser Cooling | Air Cooled |
| Maximum Print Speed | 2000 characters/sec |
| Maximum Line Speed | 900 m/min (2,940 ft/min) |
| Environmental Protection | IP54, 65 |
| Beam Output | Steered Beam |
| Laser Source Expected Life | 45,000 hours |
| Laser Wavelength Options | 10.6 μm, 9.3 μm |
| Focal Distance Options | 64 mm (2.50 in) – 400 mm (15.75 in) |
| Maximum Mark Window | 485 x 351 mm (19.09 x 13.81 in) |
| Standard I/O Connectivity | Internal Terminal Connections |
| Standard User Interface | Handheld |
| Optional User Inteface | PC, CLARiTY™ Laser Controller, TCS, Smart Graph Com |
| Umbilical | Detachable, 3 Lengths |
| Plant Air Used | No |
| Certifications/Approvals | CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA |
