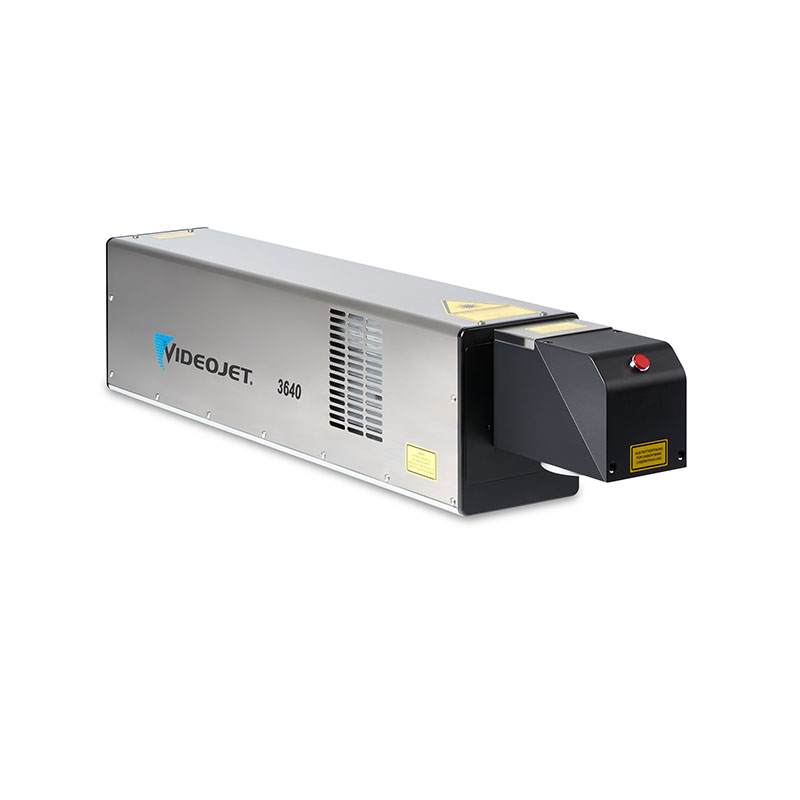

Videojet 3640 CO2 Laser Marking Printer
The 3640 60-Watt CO2 laser marking system is engineered to help address high-speed and high-volume applications in the pharmaceutical, tobacco and beverage markets. It is a compact high-speed laser, and has been designed to process complex codes at high speeds, with the industry’s widest mark field.
- Description
- Brand
Description
| Value | |
| Laser Tube | CO2 |
| Maximum Power | 60W |
| Laser Cooling | Air cooled |
| Maximum Print Speed | 2100 characters/sec |
| Maximum Line Speed | 15 m/sec (49 ft/sec) |
| Environmental Protection | IP54, IP65 |
| Beam Output | Steered Beam |
| Laser Source Expected Life | 45,000 hours |
| Laser Wavelength Options | 10.6 μm, 10.2 μm, 9.3 μm |
| Focal Distance Options | 64 mm (2.50 in) – 600 mm (23.62 in) |
| Maximum Mark Window | 601 x 440 mm (23.66 x 17.32 in) |
| Standard I/O Connectivity | Internal Terminal Connections |
| Standard User Interface | Handheld |
| Optional User Inteface | PC, CLARiTY™ Laser Controller, TCS |
| Umbilical | Detachable , 3 lengths |
| Plant Air Used | No |
| Certifications/Approvals | CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA |
Brand
Video Jet
