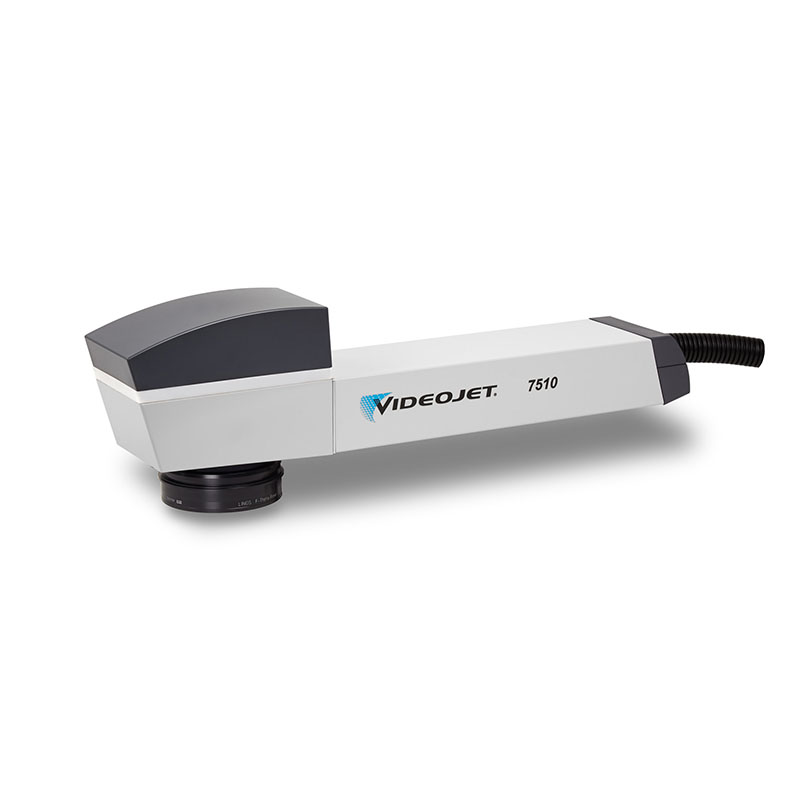

Videojet 7510 Fiber Laser Marking Systems
50 Watt Fiber Laser Marker for Ultra High Line Speed Applications

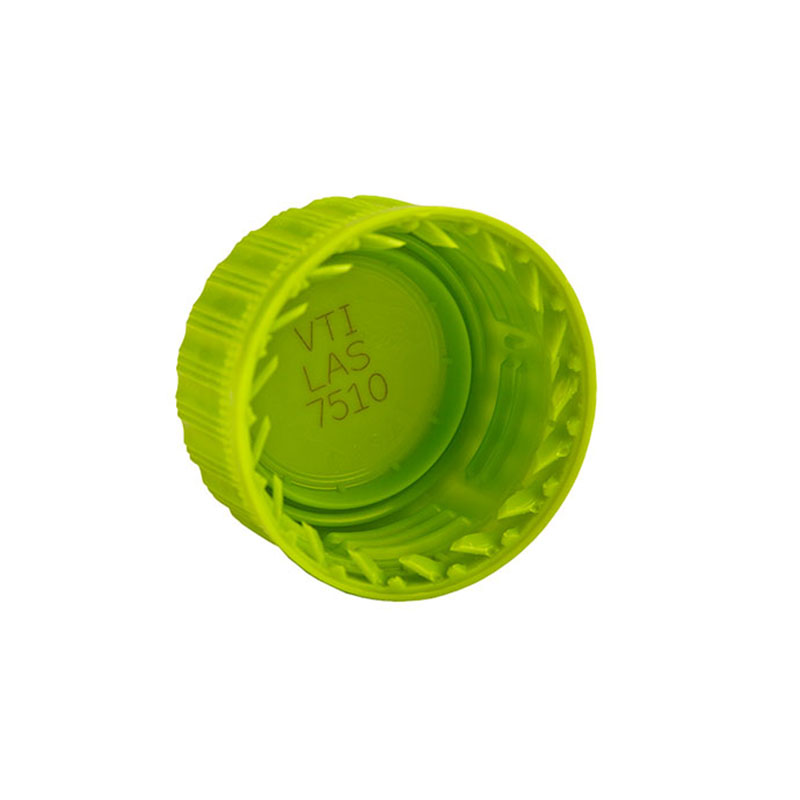

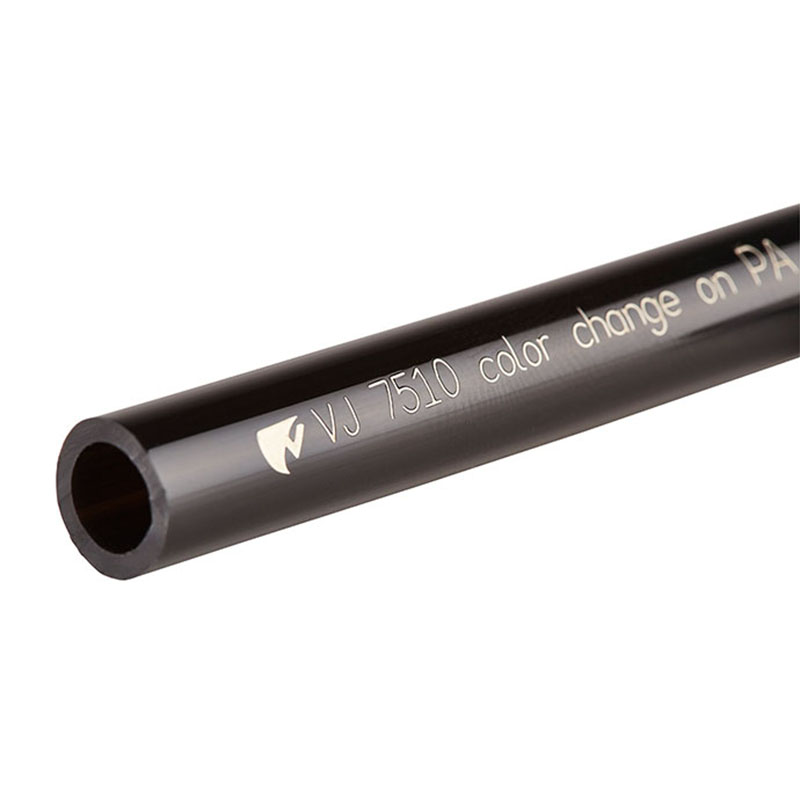

The 7510 50-Watt fiber laser printer delivers advantaged performance for high contrast marking on robust plastic packaging, metal containers and other industrial products even at ultra-fast line speeds up to 440m/min. Specifically engineered for high speed beverage, pharmaceutical and extrusion manufacturers, the 7510 delivers better mark quality, higher efficiency and a dramatically smaller marking unit than traditional solid state laser systems.
- Description
- Brand
Description
| Value | |
| Laser Tube | Ytterbium (Yb) pulsed fiber laser |
| Maximum Power | 50-Watt |
| Laser Cooling | Air Cooled |
| Maximum Line Speed | 440m/min (1440ft/min) |
| Environmental Protection | Marking Unit: IP54 Supply Unit: IP21 |
| Beam Output | Steered Beam |
| Laser Source Expected Life (MTBF) | Up to 100,000 hours (MTBF) |
| Laser Wavelength Options | 1.06µm – 1.07µm |
| Focal Distance Options | 100/163/254/420mm (3.93/6.41/10/16.53in) |
| Maximum Mark Window | 498.5 x 366.5 mm (19.62 x 14.43 in) |
| Standard I/O Connectivity | Internal Terminal Connections |
| Standard User Interface | Smartgraph PC software |

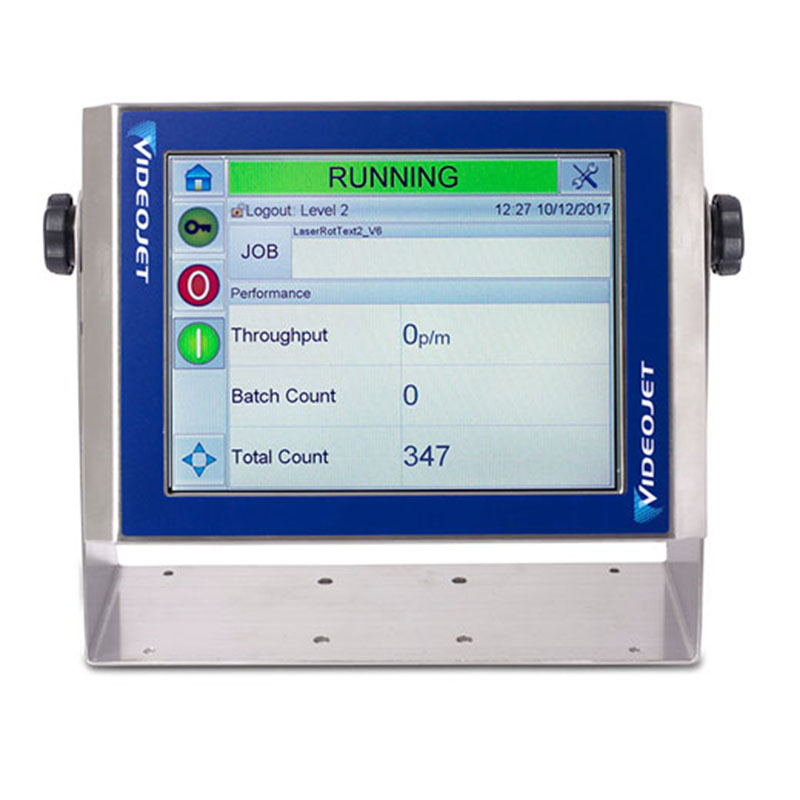

| Optional User Inteface | CLARiTY Laser Controller |
| Certifications/Approvals | CE TUV |
Brand
Video Jet
